DS 3: Ease of use and comfort / Touch-sensitive courtesy lamps

DS 3 2016-2022 Owners Manual

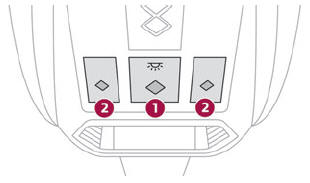

DS 3. Touch-sensitive courtesy lamps

  1. Front touch-sensitive courtesy lamp
  2. Front touch-sensitive reading lamps

DS 3. Touch-sensitive courtesy lamps

  1. Rear touch-sensitive reading lamps

Front touch-sensitive courtesy lamp

It comes on gradually:

  • when the vehicle is unlocked.
  • when the ignition is switched off.
  • when a door is opened.
  • when the remote control locking button is activated, in order to locate the vehicle.

It switches off:

  • when the vehicle is locked.
  • when the ignition is switched on.
  • 30 seconds after the last door is closed.

The front and rear touch-sensitive reading lamps come on and go off at the same time as the courtesy lamp.

A long press on the courtesy lamp completely deactivates it from coming on (confirmed by the “OFF" symbol).

Touch-sensitive reading lamps

  • With the ignition on, press the corresponding reading lamp.
