DS 3: Instruments / Trip computer

DS 3 2016-2024 Owners Manual

Displays information related to the current trip (range, fuel consumption, average speed, etc.).

Data displayed on the instrument panel

Display of the various tabs

DS 3. Trip computer

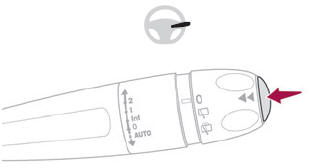

  • Pressing the button located on the end of the wiper control stalk displays the following tabs in turn:
    • Current information:
      • Driving range (Petrol or Diesel).
      • Current fuel consumption.
      • Stop & Start time counter (Petrol or Diesel).
    • Trips "1" then "2":
      • Average speed.
      • Average fuel consumption.
      • Distance travelled.

Trip reset

  • DS 3. Trip computer When the desired trip is displayed, press the button on the end of the wiper control stalk for more than 2 seconds.

Trips "1" and "2" are independent and are used in the same way.

Definitions

Range

(miles or km)

DS 3. Trip computer Distance that can still be travelled with the fuel remaining in the tank (based on the average fuel consumption over the last few miles (kilometres) travelled).

This value may vary following a change in driving style or terrain, leading to a significant change in current fuel consumption.

When the range falls below 19 miles (30 km), dashes are displayed.

After filling with at least 5 litres of fuel, the range is recalculated and is displayed if it exceeds 62 miles (100 km).

If dashes instead of figures continue to be displayed while driving, contact a dealer or a qualified workshop.

Current consumption

(mpg or l/100 km or km/l)

(miles/kWh or kWh/100 km or km/kWh) (Electric)

DS 3. Trip computer / DS 3. Trip computer Calculated during the last few seconds.

This function is only displayed at speeds above 19 mph (30 km/h) (Petrol or Diesel).

Average consumption

(mpg or l/100 km or km/l)

(miles/kWh or kWh/100 km or km/kWh) (Electric)

DS 3. Trip computer / DS 3. Trip computer Calculated since the last trip computer reset.

Average speed

(mph or km/h)

DS 3. Trip computer Calculated since the last trip computer reset.

Distance travelled

(miles or km)

DS 3. Trip computer Calculated since the last trip computer reset.

Stop & Start time counter

(minutes/seconds or hours/minutes)

If your vehicle is fitted with Stop & Start, a time counter calculates the time spent in STOP mode during a journey.

The time counter is reset each time the ignition is switched on.
