DS 3: Back-up procedures / Changing the battery
DS 3 2016-2025 Owners Manual
A message is displayed on the instrument panel when the battery needs changing.
Battery type: CR2032/3 volts.

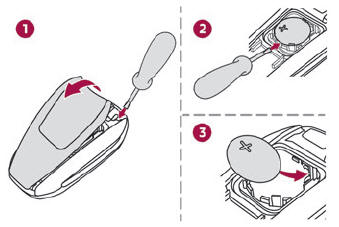

- Unclip the cover by inserting a small screwdriver in the slot and lift the cover.
- Remove the flat battery from its housing.
- Put the new battery in place, respecting the polarity. Start by inserting it into the contacts located in the corner, then clip the cover onto the unit.
- Reinitialise the remote control.
For more information on Reinitialising the remote control, refer to the corresponding section.
Do not throw remote
control batteries
away, as they contain metals that are
harmful to the environment. Take them to an
approved disposal point.
Central locking not functioning
Use these procedures in the following cases:
Central locking malfunction.
Battery disconnected or discharged.
In the event of a
malfunction of the
central locking system, the battery must
be disconnected to ensure that the vehicle is
locked fully...
Reinitialising the remote control
Following replacement of the battery or in the
event of a fault, it may be necessary to reinitialise
the remote control.
Press the handle until the point of resistance
to unfold it and access the lock...
