DS 3: Rear bench seat / Folding the backrests

DS 3 2016-2025 Owners Manual

Manoeuvring the backrests should only be done when the vehicle is stationary.

First steps:

  • Lower the head restraints.
  • If necessary, move the front seats forward.
  • Check that no person or object might interfere with the folding of the backrests (e.g. clothing, luggage).
  • Check that the seat belts are free, not engaged in the buckles. Release them so that the backrest can be moved.

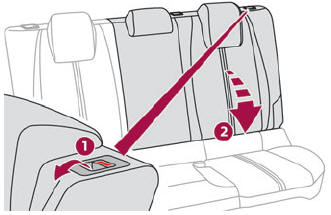

DS 3. Folding the backrests

  • Press the backrest release grip 1.
  • Guide the backrest 2 down to the horizontal position.

DS 3. Folding the backrests When the backrest is released, the red indicator in the release grip is visible.

    Rear head restraints

    They have two positions: A high position, for when the seat is in use: Pull the head restraint fully up. A low position, for stowing, when the seat is not in use: Press the lug A to release the head restraint and push it down...

    Repositioning the backrests

    First check that the outer seat belts are lying vertically flat alongside the backrest latching rings. Put the backrest 2 in the upright position and push it firmly to latch it home...
