DS 3: Rear bench seat / Rear head restraints

DS 3 2016-2024 Owners Manual

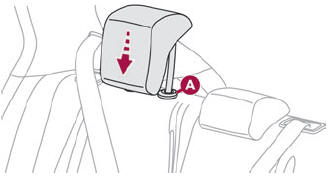

DS 3. Rear head restraints

They have two positions:

  • A high position, for when the seat is in use:
    • Pull the head restraint fully up.
  • A low position, for stowing, when the seat is not in use:
    • Press the lug A to release the head restraint and push it down.

The rear head restraints can be removed.

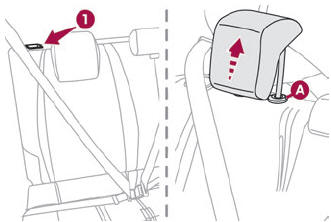

Removing a head restraint

DS 3. Rear head restraints

  • Release the backrest using control 1.
  • Tilt the backrest slightly forwards.
  • Pull the head restraint fully up.
  • Press the lug A to release the head restraint and remove it completely.

Refitting a head restraint

  • Insert the head restraint rods into the guides in the corresponding backrest.
  • Push the head restraint fully down.
  • Press the lug A to release the head restraint and push it down.

DS 3. Rear head restraints Never drive with passengers seated at the rear when the head restraints are removed; the head restraints should be in place and in the high position.

The head restraint for the centre seat and those for the outer seats are not interchangeable.

    Rear bench seat

    B..

    Folding the backrests

    Manoeuvring the backrests should only be done when the vehicle is stationary. First steps: Lower the head restraints. If necessary, move the front seats forward...
