DS 3: Lighting and visibility / Changing a wiper blade

DS 3 2016-2024 Owners Manual

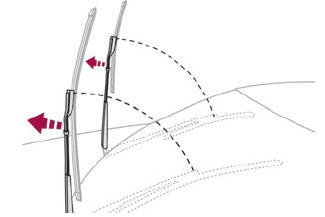

Removing/Refitting at the front

DS 3. Changing a wiper blade

  • Carry out these wiper blade replacement operations from the driver's side.
  • Starting with the wiper blade farthest from you, hold each arm by the rigid section and raise it as far as possible.

DS 3. Changing a wiper blade Do not touch the wiper blades - risk of irreparable deformation.

Do not release them while moving them. Risk of damaging the windscreen!

  • Clean the windscreen using screenwash fluid.

DS 3. Changing a wiper blade Do not apply "Rain X" type water-repellent products.

  • Unclip the worn wiper blade closest to you and remove it.
  • Install the new wiper blade and clip it to the arm.
  • Repeat the procedure for the other wiper blade.
  • Starting with the wiper blade closest to you, once again hold each arm by the rigid section, then guide it carefully onto the windscreen.

Removing/refitting at the rear

  • Hold the arm by the rigid section and raise it as far as possible.
  • Clean the rear screen using screenwash fluid.
  • Unclip the worn wiper blade and remove it.
  • Install the new wiper blade and clip it to the arm.
  • Once again hold the arm by the rigid section, then guide it carefully onto the rear screen.
