DS 3: Safety / Seat belts
Inertia reel
The seat belts are equipped with an inertia reel which allows the strap length to automatically adjust to your shape. The seat belt returns to its storage automatically when it is not used.
The inertia reels are fitted with a device which automatically locks the strap in the event of a collision, emergency braking or if the vehicle rolls over. It can be released by pulling the strap firmly and then releasing it so that it reels in slightly.
Pyrotechnic pretensioning
This system improves safety in the event of a frontal or side impact.
Depending on the severity of the impact, the pyrotechnic pretensioning system instantly tightens the seat belts against the body of the occupants.
The pyrotechnic pretensioning seat belts are enabled when the ignition is on.
Force limiting system
This system reduces the pressure of the seat belt on the chest of the occupant, thus improving their protection.
In the event of an
impact
Depending on the nature and seriousness of the impacts, the pyrotechnic device may trigger before and independently of airbag deployment. Deployment of the pretensioners is accompanied by a slight discharge of harmless smoke and a noise, due to the activation of the pyrotechnic cartridge incorporated in the system.
In all cases, the airbag warning lamp comes on.
Following an impact, have the seat belt system checked, and if necessary replaced, by a dealer or a qualified workshop.
Front seat belts
The front seat belts are fitted with a pyrotechnic pretensioning system and a force limiting system.

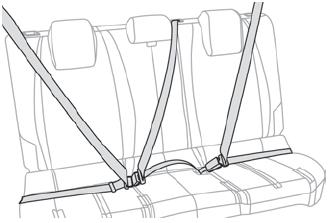

Rear seat belts
Each of the rear seats has a three-point seat belt with inertia reel.
The outer seats are fitted with a pyrotechnic pretensioning and force limiting system.
Fastening
- Pull the strap, then insert the tongue into the buckle.
- Check that the seat belt is fastened correctly by pulling on the strap.
Unfastening
- Press the red button on the buckle.
- Guide the seat belt as it is reeled in.
Advanced Traction Control
This special patented traction control system
improves grip on snow, mud and sand.
For optimum grip on snow,
it is
recommended that you fit the vehicle with
winter tyres...
Seat belt not fastened/unfastened alerts
Front left seat belt warning lamp
Front right seat belt warning lamp
Rear left seat belt warning lamp
Rear centre seat belt warning lamp
Rear right seat belt warning lamp
If the corresponding seat belt is not fastened
or is unfastened, when the ignition is switched
on, the seat belts warning lamp comes on in the
instrument panel and the corresponding warning
lamp (1 to 5) comes on in r..
