DS 3: Driving / Driving modes

DS 3 2016-2022 Owners Manual

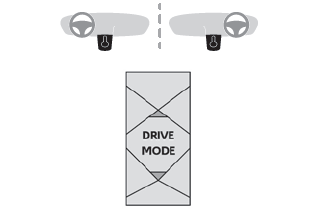

The number and type of driving modes available depend on the vehicle’s engine and equipment. Driving modes are selected using the following control:

DS 3. Driving modes

Pressing the control displays the modes on the instrument panel and, depending on version, on the screen with DS CONNECT NAV.

With an electric motor, you cannot select a mode if the READY lamp is off.

The selected mode is activated immediately.

With petrol / Diesel engines

Whenever the ignition is switched on, Normal driving mode is selected by default.

Normal

To restore the default settings.

Eco

To reduce fuel consumption by optimising the operation of the heating and air conditioning and, depending on version, accelerator, automatic gearbox, gear shift indicator.

Free-wheeling in Eco mode: depending on version, with the EAT8 gearbox, switching into "freewheeling" is encouraged to slow the vehicle down without using engine braking. You can save fuel by taking your foot completely off the accelerator pedal in anticipation of slowing down.

To further reduce the electrical energy consumption of the traction battery by limiting the engine torque.

Sport

To obtain more dynamic driving with action on the power steering, DS ACTIVE SUSPENSION CONTROL, accelerator and gear changes (with an automatic gearbox) and the possibility of displaying the vehicle’s dynamic settings on the instrument panel.

Manual

Permanent Manual mode with an automatic gearbox and DS PARK PILOT.

To change gears manually using the control paddles on the steering wheel.

With electric motor

Each time the ignition is switched on, Normal mode is selected by default.

Normal

This optimises the driving range and dynamic performance.

To obtain maximum torque and power, depress the accelerator pedal fully.

Eco

Optimises energy consumption, by reducing the output of the heating and air conditioning (without actually deactivating them) and limiting both motor torque and power.

Sport

Enables more dynamic driving, acting on the power steering, accelerator and gear changes with an automatic gearbox and the possibility of displaying the vehicle’s dynamic settings on the instrument panel.

    Drive selector (Electric)

    The drive selector is a pulse selector with a regenerative braking function. The drive selector provides traction control based on the driving style, the road profile and the vehicle load...

    Hill start assist

    This system keeps the vehicle briefly stationary (for approximately 2 seconds) when making a hill start, while you transfer your foot from the brake pedal to the accelerator pedal...
