DS 3: Spare wheel / Access to the spare wheel

DS 3 2016-2022 Owners Manual

DS 3. Access to the spare wheel

The spare wheel is stored under the boot carpet.

DS 3. Access to the spare wheel The spare wheel is a ‘space-saver’ wheel.

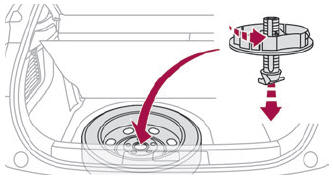

Removing the spare wheel

DS 3. Access to the spare wheel

  • Slacken the central nut.
  • Remove the fastening device (nut and bolt).
  • Lift the spare wheel towards you from the rear.
  • Take the wheel out of the boot.

Putting the spare wheel back in place

DS 3. Access to the spare wheel The punctured wheel cannot be put under the boot floor.

DS 3. Access to the spare wheel

  • Put the spare wheel back in place in its housing.
  • Slacken the nut on the bolt by a few turns.
  • Position the fastening device (nut and bolt) in the middle of the wheel.
  • Tighten the central nut sufficiently to retain the wheel correctly.
  • Depending on version, put the tool box back in place in the middle of the wheel and clip it in place.

    Spare wheel

    ..

    Removing a wheel

    Parking the vehicle Immobilise the vehicle where it does not obstruct traffic: the ground must be level, stable and non-slippery. With a manual gearbox, engage first gear to lock the wheels, apply the parking brake, unless it is set to automatic mode, and switch off the ignition...
