DS 3: Reversing camera / Standard view. Zoom view. 180° view

DS 3 2016-2023 Owners Manual

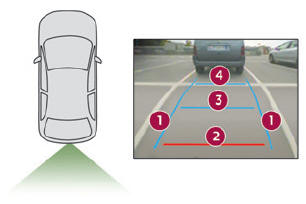

Standard view

DS 3. Standard view. Zoom view. 180° view

The area behind the vehicle is displayed on the screen.

The blue lines 1 represent the width of your vehicle, with the mirrors unfolded; their direction changes according to the position of the steering wheel.

The red line 2 represents a distance of 30 cm from the rear bumper; the two blue lines 3 and 4 represent 1 m and 2 m, respectively.

This view is available with AUTO mode or in the view selection menu.

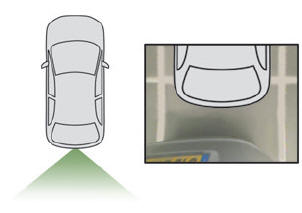

Zoom view

DS 3. Standard view. Zoom view. 180° view

The camera records the vehicle's surroundings during the manoeuvre in order to create a view from above the rear of the vehicle in its near surroundings, allowing the vehicle to be manoeuvred around nearby obstacles.

This view is available with AUTO mode or in the view selection menu.

DS 3. Standard view. Zoom view. 180° view Obstacles may appear further away than they actually are.

It is important to monitor the sides of the vehicle during the manoeuvre, using the mirrors.

Parking sensors also provide additional information about the area around the vehicle.

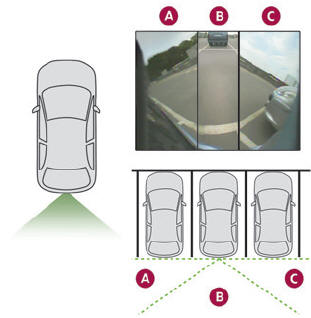

180° view

DS 3. Standard view. Zoom view. 180° view

The 180° view facilitates reversing out of a parking space, making it possible to see the approach of vehicles, pedestrians and cyclists.

This view is not recommended for carrying out a complete manoeuvre.

It features 3 areas: left A, centre B and right C.

This view is only available via the view selection menu.
